Liberty Cubicle Partition
Have a QuestionThe Liberty Cubicle features floor mounted brackets and no overhead bracing. It is available in 13mm Compact Laminate and 18mm / 32mm MR Board. It is suitable for toilets and showers (13mm Compact Laminate only). The lack of overhead bracing makes this system ideal for most low ceiling applications.
18mm / 32mm MR Board
13mm Compact Laminate
Satin Chrome or Satin Matte Black Door Hardware
Clear Anodised Aluminium U Channel Wall Channels & Floor Brackets
13mm Compact Laminate
Satin Chrome or Satin Matte Black Door Hardware
Clear Anodised Aluminium U Channel Wall Channels & Floor Brackets
Wide range of finishes available
Privacy profile option
Powder coating to match board colour
Bolt through door hardware
Privacy profile option
Powder coating to match board colour
Bolt through door hardware

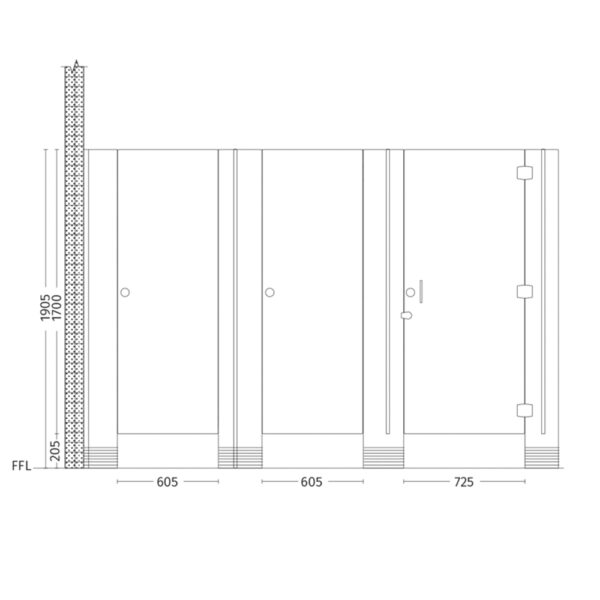

Overall Height: 1905mm

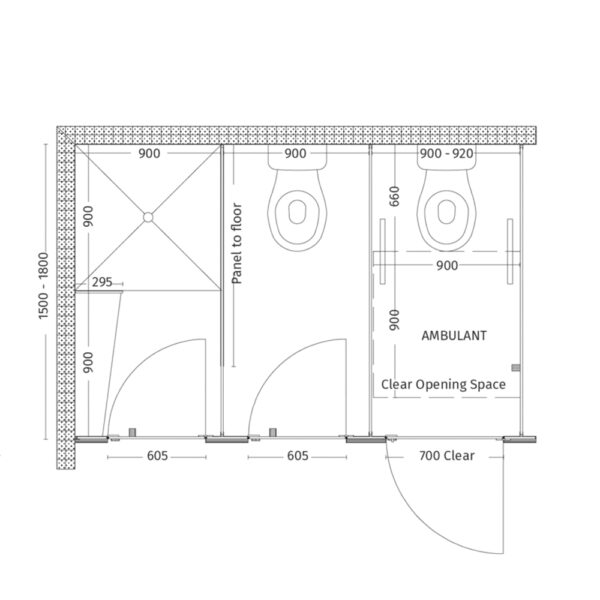

Overall Depth: 1500 - 1800mm
Divisional Panels: 1700mm high including 205mm floor clearance
Frontal Panels: 1905mm high, min width 200mm, max 450mm
Doors: 1700H x 600W, floor clearance 205mm
Overall Depth: 1500 - 1800mm
Divisional Panels: 1700mm high including 205mm floor clearance
Frontal Panels: 1905mm high, min width 200mm, max 450mm
Doors: 1700H x 600W, floor clearance 205mm
