Pinnacle Cubicle Partition
Have a QuestionThe Pinnacle Cubicle is designed for strength, with sturdy floor brackets and overhead bracing. It is available in 13mm Compact Laminate and 18mm / 32mm MR Board and is suitable for toilets and showers (13mm Compact Laminate only). It’s design makes it vandal resistant for high traffic public spaces.
13mm Compact Laminate or 18mm / 32mm MR Board
Satin Chrome or Satin Matte Black Door Hardware
Clear Anodised Aluminium U Channels - Wall & Ceiling, headrail, and floor brackets
Satin Chrome or Satin Matte Black Door Hardware
Clear Anodised Aluminium U Channels - Wall & Ceiling, headrail, and floor brackets
Privacy profile option
Powder coating to match board colour
Bolt through door hardware
Powder coating to match board colour
Bolt through door hardware

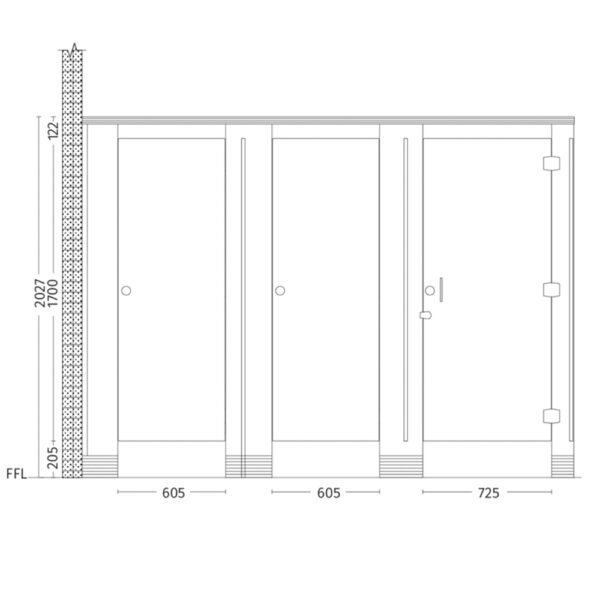

Overall Height: 2027m

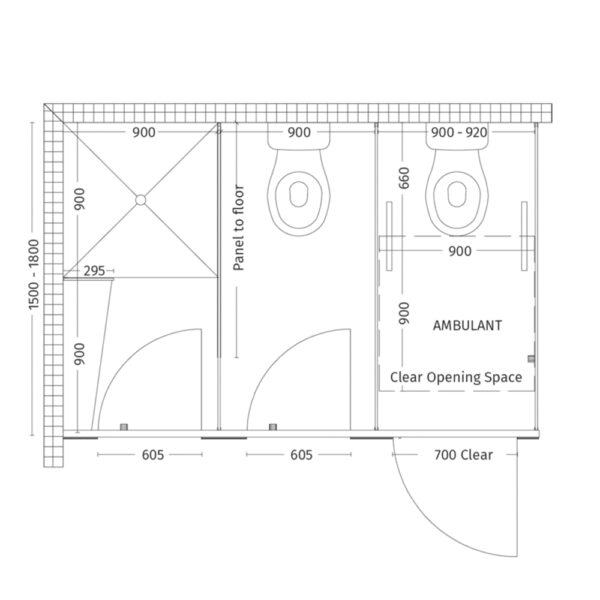

Overall Depth: 1500 - 1800mm
Divisional Panels: 1700mm high, 205mm floor clearance
Frontal Panels: 2027mm high, min width 150mm
Doors: 1700H x 600W, floor clearance 205mm
Overall Depth: 1500 - 1800mm
Divisional Panels: 1700mm high, 205mm floor clearance
Frontal Panels: 2027mm high, min width 150mm
Doors: 1700H x 600W, floor clearance 205mm
